Mechanisms Exercises

Mechanisms Exercises

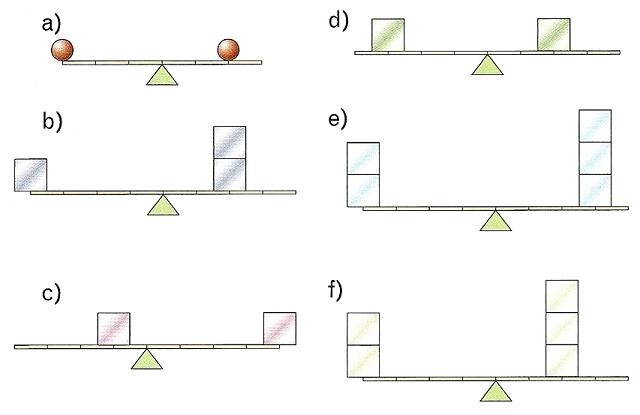

1º  Indicate, for each case, in which direction the balance is inclined: towards the right, left or in equilibrium.

2º . What mechanisms can be used if I have to raise a piano to the 6th floor so it can enter through a window?

3º  Explain the differences between a chain transmission system and  a belt transmission system. Which advantages and inconveniences does each one have? Draw a picture of each.

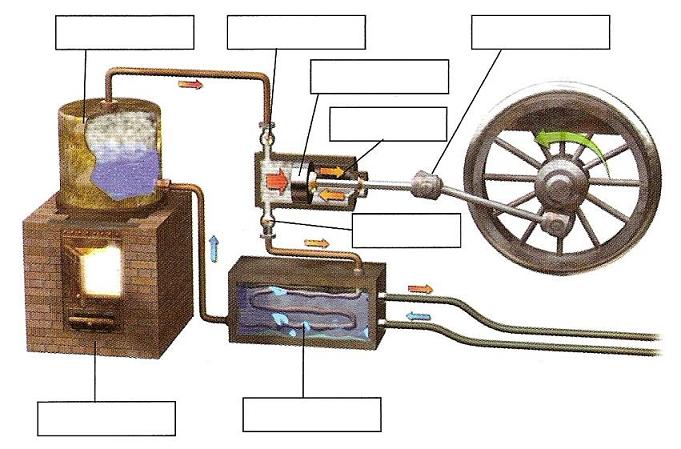

4º  Fill in the boxes of the steam machine picture.

steam machine
5  Justify which of these machines are external combustion versus internal combustion machines.
a. Locomotive
b. Car
c. Pressure cooker

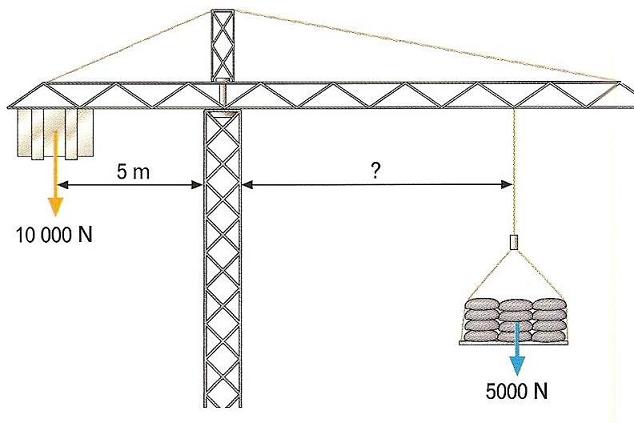

6º  The crane seen below needs to lift a pallet of cement sacks which weight 5.000N. The counterweight is 10.000N and is located at the 5m mark on the tower. At what distance of the tower will the pallet be lifted so the structure does not suffer?

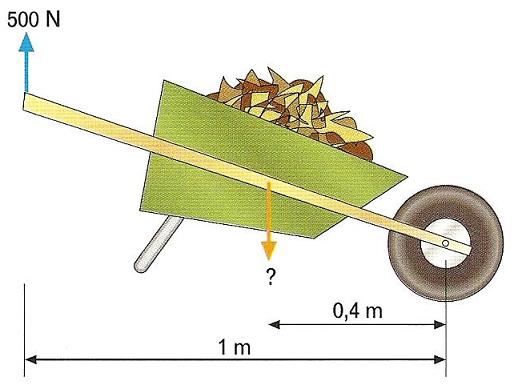

7. If I have a force of 500N, what weight am I able to transport with the cart drawn below?

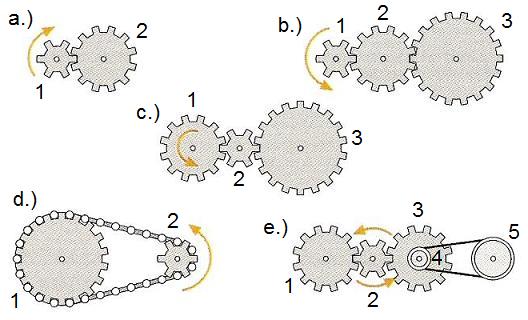

8. Analyze the following mechanism systems  and indicate with an arrow the direction that they turn and the element that turns most slowly.mechanism systems

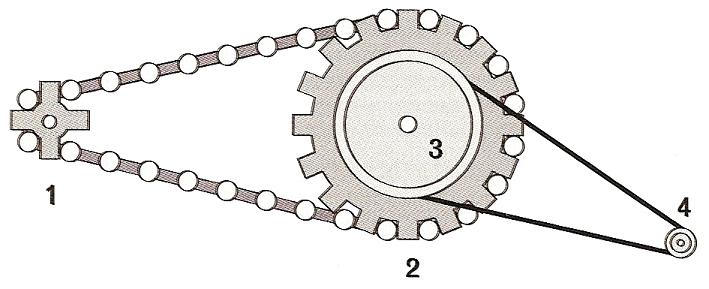

9º  Observe the following transmission system and answer:

transmission system
a. What is the name of the system formed by 1 and 2?
b. What is the name of the system formed by 3 and 4?
c. If 1 turns to the right, indicate with an arrow the direction the other elements turn.
d. If 1 turns 6 times, how many times does 2 turn?
e. If 3 turns 1.5 r.p.m and measures 10 cm, what velocity does 4 have if it’s diameter is 2 cm?
f. Calculate the transmission relationship between 1 and 4.

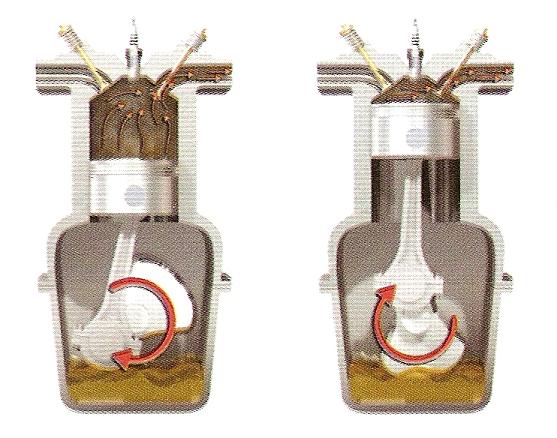

10º  In what phases are the cylinders below? Admission, compression, explosion or escape?

11º Describe the differences between a car motor and a motorcycle motor.

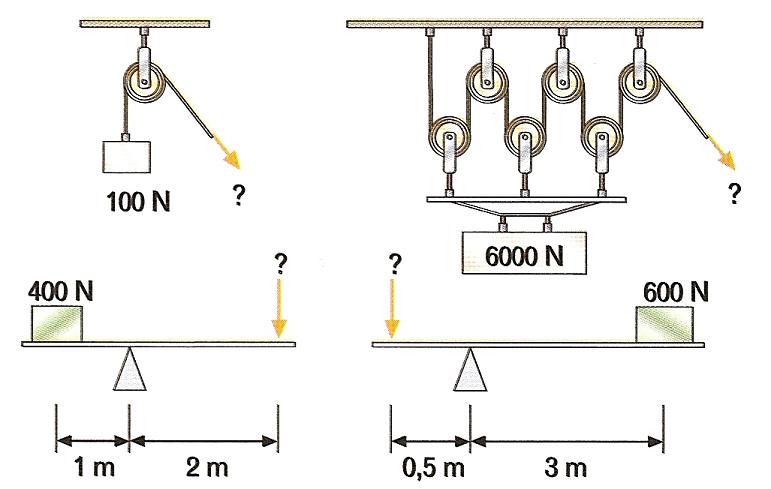

12º  Indicate the needed force in the following cases.
13 . In a transmission system  formed by toothed wheels , the wheel , which has 20 teeth, makes 5 turns per minute and moves B, which has 100 teeth,
a. Draw a picture of the system.
b. At what speed does B move?
c. Which toothed wheel has the most force at it’s axis?
14. If I want to push a car that weighs 8,000N up a hill that is 100m long and 1m high, can I do it with a pushing force of 300N?


1º  a) To the left ,  b) Equilibrium  , c) To the right , d) To the left , e) To the right , f) To the left
2º   A block and tackle ( image on the left )  which  is a system of two or more pulleys with a rope or cable threaded between them.

3º  The chain transmission system uses chain and sprockets. The belt transmission system uses pulleys and belt. Benefits: greater efforts transmitting in chain and belt absorbs braking and acceleration without breaking. Disadvantage: The chain is more expensive and louder and the belt is more fragile.

4º  Boiler, Oven, valve, piston, cylinder, valve, condenser, Rod / Crankshaft.

5º External Combustion: locomotive and pressure cooker, because the fuel is burned outside. Internal Combustion:  car, because the fuel is burned inside the engine.

6º  Applying the law of the lever and replacing:  F · BF = R · BR → 5000 N · BF = 10 000 N · 5 m → BF = 10 m

7º   Applying the law of the lever and replacing: F · BF = R · BR → 500 N · 1 m = R · 0,4 m → R = 1250 N . Therefore, we can carry 1250 N.

8º  a) 2 rotates more slowly. 1 and 2 rotate in opposite directions. b) 3 rotates more slowly. 1 and 3 rotate in opposite directions to 2. c) 3 rotates more slowly. 1 and 3 rotate in opposite directions to 2. d) 1 rotates more slowly. 1 and 2 rotate in the same direction. e) 5 rotates more slowly. 1, 3, 4 and 5 rotate in opposite directions to 2.

9º  a) chain drive system. b)  belt drive system.  c) All clockwise.   d) Z1 · ω1 = Z2 · ω2 → 4 · 6 rpm = 16 · ω2 → ω2= 1,5 rpm

 e) Φ3 · ω3 = Φ4 · ω4 → 10 cm · 1,5 rpm = 2 cm · ω4 → ω4 = 75 rpm   f) r = ω4 / ω1 = 75 rpm / 6 rpm = 12,5

10º   Compression and escape.
11º   The difference is that the car engine is a four stroke motor , and the bike a  two stroke motor .

12º  a) 100 N. c) 3600 N. b) 200 N. d) 1000 N.
13º b.) Applies the equilibrium equation: ZA · ωA = ZB · ωB → 20 · 5 rpm = 100 · ωB → ωB = 1 rpm . c) The B, because it rotates more slowly.

14º  In an inclined plane : F = R · a / b. Data:  R = 8000 N,  a = height = 1 m,  b = distance travelled = 100 m. Therefore: F = 8000 · 1/100 = 80 N. Yes, because with a 80 N force is enough to tow the vehicle.
